Perforated Metal Sheet for Pipe Filter Protection Screen

Perforated Metal Sheet for Pipe Filter Protection Screen
Perforated Metal Sheet for Pipe Filter Protection Screen Perforated Metal Sheet for Pipe Filter Protection Screen

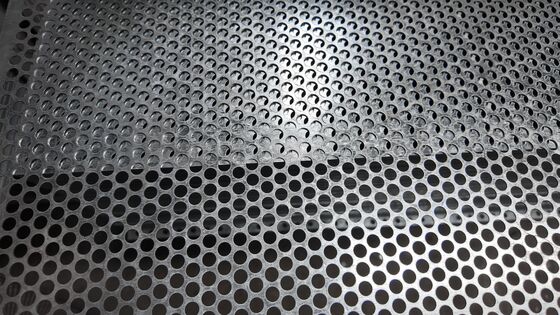

Large Image :  Perforated Metal Sheet for Pipe Filter Protection Screen

Product Details:
Place of Origin: Made in China
Brand Name: zhuoxin
Model Number: 1000*2000m
Payment & Shipping Terms:
Minimum Order Quantity: Minimum order of 100 pieces
Price: $4 to $200
Packaging Details: wooden pallets or wooden cases
Delivery Time: about 7 days
Payment Terms: MoneyGram,T/T,L/C
Supply Ability: Produce 200 tons in 7 days
Contact Now Chat Now

Perforated Metal Sheet for Pipe Filter Protection Screen

description
Productname: Perforated Metal Sheet Keyword: Perforated Mesh
Optional Material: SUS304 Stainless Steel / Hot Dipped Galvanized Mild Steel Optional Thickness: 0.4mm、0.5mm、0.6mm、0.8mm、1.0mm、1.2mm、1.5mm、2.0mm
Hole Aperture: 2mm、3mm、4mm、5mm、6mm、8mm、10mm、12mm Hole Center Pitch: 6mm、8mm、10mm、12mm、15mm、20mm Customizable
Hole Arrangement: Staggered Hexagonal Layout (standard For Filtration) / Straight Row Standard Sheet Size: 1000×2000mm、1220×2440mm
Surface Treatment: Pickling Passivation (304 Stainless); Hot Dipped Galvanized (carbon Steel) Deep Processing: Cutting, Rolling Cylinder, Bending, Seam Welding, Mounting Hole Punching
Highlight:

perforated metal sheet for pipe filter

,

metal protection screen for pipes

,

architectural perforated metal sheet

Perforated Metal Sheet for Pipe Filter Protection Screen



Perforated Metal Sheet Product Introduction:

This perforated metal sheet is specially processed into cylindrical or arc filter protection mesh for all kinds of industrial pipelines, water pipes, oil pipelines and sewage pipe filters. Optional raw materials include SUS304 stainless steel and hot-dipped galvanized carbon steel.

Uniform round holes intercept large impurities, gravel, suspended solids to avoid blocking internal filter cores, pump valves and pipeline equipment. After CNC punching, the sheet can be rolled into tubular filter guard, curved arc baffle or flat filter support plate according to pipe diameter. All hole edges are fully deburred to prevent scratching filter bags and pipeline inner walls.

Multiple thickness, aperture and hole pitch specifications are in stock, we support custom cutting, rolling, bending and welding to match various pipe diameters. Widely applied for water treatment pipelines, chemical fluid pipes, oil well pipelines, agricultural irrigation pipe filtration protection. Factory direct FOB supply for pipeline manufacturers, water treatment equipment factories and chemical engineering contractors.


Perforated Mesh Product Introduction Sheet:

Item Details
Material Steel, Galvanized Steel, Stainless Steel (304/316), Copper, Brass, Aluminum
Thickness 0.5–3mm
Sheet Size (Meter) 1.22*2.44m / 1.25*2.5m
Optional Hole Shapes Round, Square, Rectangular, Plum Blossom, Diamond, Cross, etc.
Product Features Smooth surface, Wind-resistant, Durable, Corrosion-resistant
Applications Filtration, Breeding, Craft making, Decoration, Basket processing,etc.
Architectural Infill panels, Sunshade, Cladding, Column covers, Metal signs, Fencing screens
Food & Beverage Grain dryers, Ventilation equipment, Baking trays, Coffee screens, etc.
Chemical & Energy Filters, Coal washing equipment, Mine cages, Battery separators, Centrifuges
Automotive Air filters, Radiator grilles, Flooring, Ventilation grilles, Engine ventilation devices, etc.
Construction Ceiling sound insulation, Acoustic panels, Stair treads, Pipe guards, Ventilation grilles
Buildings Building curtain wall mesh, Facades, Sunshades



Product Advantages:

  • Dual material selection: SUS304 stainless steel resists acid, alkali and salt water for chemical pipeline; galvanized sheet for conventional clean water pipeline with lower cost.
  • Multi-shape deep processing: Can be rolled into cylinder, curved arc or flat sheet to fit any pipeline filter structure.
  • Effective anti-block protection: Evenly distributed holes balance fluid passing rate and impurity interception, extend filter core service life.
  • Burr-free smooth surface: No sharp edges to damage filter bags, membranes and pipeline inner coating.
  • High structural rigidity: Not easy to deform under fluid impact, stable long-term pipeline operation protection.
  • Full customizable size: Adjust thickness, hole size, tube diameter according to customer pipeline drawing requirements.

Application Scenarios:

  • Water Treatment Pipeline: Tap water pipe filter guard, sewage pipeline impurity interception screen.
  • Chemical Industrial Pipeline: Acid & alkali fluid pipe filter support perforated cylinder.
  • Petroleum & Oil Pipeline: Oil well crude pipe large particle impurity separation mesh.
  • Agricultural Irrigation Pipe: Farm irrigation pump inlet anti-clog perforated protection screen.
  • Mechanical Equipment Pipe: Chiller, water pump inlet filter protection punching mesh.

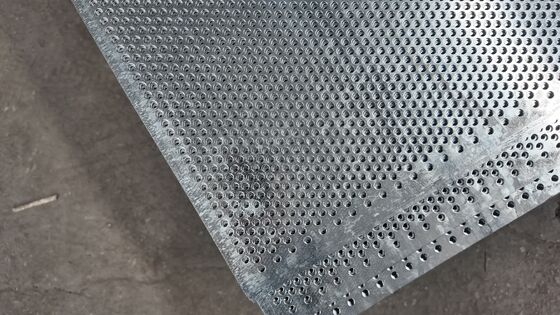

Perforated Metal Sheet for Pipe Filter Protection Screen 0Perforated Metal Sheet for Pipe Filter Protection Screen 1

Perforated Metal Sheet for Pipe Filter Protection Screen 2
