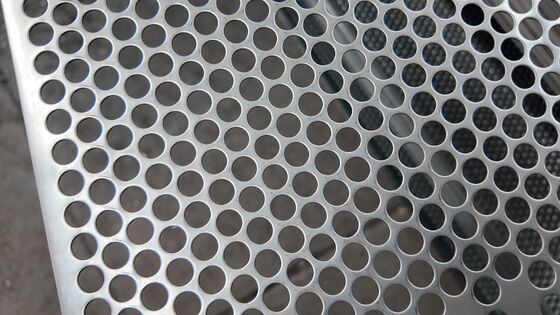

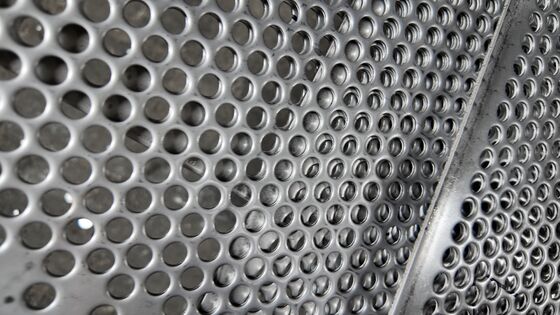

304 Stainless Punching Board for Electrical Cabinet Heat Dissipation Grille

304 Stainless Punching Board for Electrical Cabinet Heat Dissipation Grille
304 Stainless Punching Board for Electrical Cabinet Heat Dissipation Grille
304 Stainless Punching Board for Electrical Cabinet Heat Dissipation Grille 304 Stainless Punching Board for Electrical Cabinet Heat Dissipation Grille 304 Stainless Punching Board for Electrical Cabinet Heat Dissipation Grille

Large Image :  304 Stainless Punching Board for Electrical Cabinet Heat Dissipation Grille

Product Details:
Place of Origin: Made in China
Brand Name: zhuoxin
Model Number: 1000*2000m
Payment & Shipping Terms:
Minimum Order Quantity: Minimum order of 100 pieces
Price: $4 to $200
Packaging Details: wooden pallets or wooden cases
Delivery Time: about 7 days
Payment Terms: MoneyGram,T/T,L/C
Supply Ability: Produce 200 tons in 7 days
Contact Now Chat Now

304 Stainless Punching Board for Electrical Cabinet Heat Dissipation Grille

description
Productname: Stainless Steel Perforated Mesh Keyword: Perforated Mesh
Material: SUS304 / 304 Food Grade Stainless Steel Thickness: 0.4~3mm
Packing: Pallet Color: Customizable
Round Hole Diameter: 1.5~10mm Hole Center Pitch: 3~15mm
Standard Stock Sheet Size: 1000×2000mm、1220×2440mm (4×8ft)、1250×2500mm Surface Treatment: Pickling Passivation Matte Finish / Hairline Brushed / Mirror Polishing Optional
Highlight:

304 stainless punching board

,

electrical cabinet heat dissipation grille

,

perforated stainless steel sheet

304 Stainless Punching Board for Electrical Cabinet Heat Dissipation Grille


304 Stainless Punching Board Core Overview:

This 304 stainless steel round hole punching board is specially customized as heat dissipation grille for all types of electrical cabinets, distribution boxes, PLC control cabinets and server racks. Made of SUS304 stainless steel, it features excellent rust resistance, acid and alkali resistance, solving the rust blockage problem of galvanized vent panels in damp workshop environments.

Adopted high-precision CNC staggered round hole punching process, uniform hole diameter and hole pitch ensure balanced air convection inside cabinet, timely discharge heat generated by circuit breakers, power modules and mainboards to avoid equipment overheating shutdown. All hole edges and plate edges are fully deburred without sharp burrs, will not scratch internal wires and circuit boards during cabinet assembly.

Complete specifications of thickness, round hole size and hole spacing are in large stock, standard size 1000×2000mm ready for fast shipment. Custom cutting, edge bending, frame welding and mounting hole punching are supported. Widely supplied to electrical cabinet manufacturers, automation equipment factories, data room server cabinet manufacturers with factory direct FOB price.


Stainless Steel Perforated Mesh Product Introduction Table:

Item Details
Material Steel, Galvanized Steel, Stainless Steel (304/316), Aluminum
Thickness 0.5–3mm
Sheet Size (Meter) 1.22*2.44m / 1.25*2.5m
Optional Hole Shapes Round, Square, Rectangular, Plum Blossom, Diamond, Cross, etc.
Product Features Smooth surface, Wind-resistant, Durable, Corrosion-resistant
Applications Filtration, Breeding, Craft making, Decoration, Basket processing,etc.
Architectural Infill panels, Sunshade, Cladding, Column covers, Metal signs, Fencing screens
Food & Beverage Grain dryers, Ventilation equipment, Baking trays, Coffee screens, etc.
Chemical & Energy Filters, Coal washing equipment, Mine cages, Battery separators, Centrifuges
Automotive Air filters, Radiator grilles, Flooring, Ventilation grilles, Engine ventilation devices, etc.
Construction Ceiling sound insulation, Acoustic panels, Stair treads, Pipe guards, Ventilation grilles
Buildings Building curtain wall mesh, Facades, Sunshades



Production Process:

  • SUS304 stainless steel coil blanking: Cut stainless raw material into flat sheets per standard or custom dimension.
  • CNC staggered round hole precision punching: Professional round hole mold to punch neat uniform ventilation holes.
  • Roller leveling & full deburring: Remove plate warpage, polish all hole edges to clear sharp metal burrs.
  • Pickling & passivation treatment: Form dense anti-corrosion protective film to strengthen acid and alkali resistance.
  • Deep processing as demand: Cutting, edge folding, welding frame, punching mounting holes for cabinet installation.
  • Heat dissipation flatness inspection: Test air permeability, hole uniformity and surface smoothness, qualified panels classified into stock area.

Application Scenarios:

  • Low Voltage Power Equipment: Distribution box ventilation grille, power cabinet heat dissipation punching board.
  • Industrial Automation Control: PLC control cabinet, robot equipment housing cooling perforated panel.
  • Data Center IT Equipment: Server rack cabinet, network switch cabinet dust-proof heat dissipation mesh.
  • New Energy Charging Equipment: EV charging pile shell ventilation anti-corrosion grille plate.
  • Electrical Hardware Factory: Raw stainless punching blanks for custom cabinet cooling window frames.

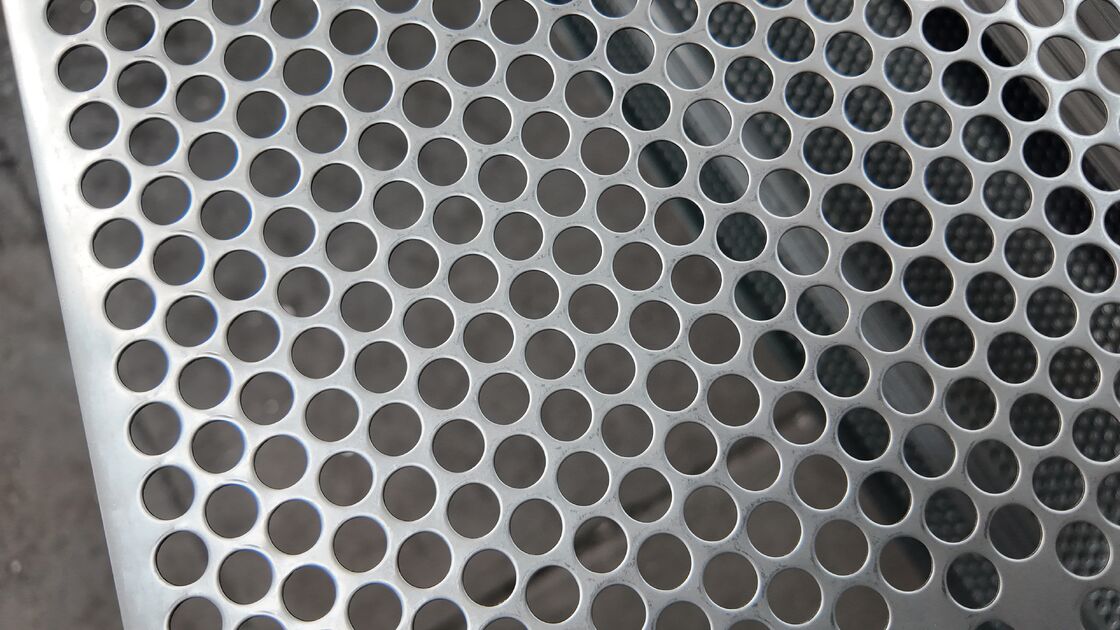

304 Stainless Punching Board for Electrical Cabinet Heat Dissipation Grille 0304 Stainless Punching Board for Electrical Cabinet Heat Dissipation Grille 1304 Stainless Punching Board for Electrical Cabinet Heat Dissipation Grille 2







Tag:

perforated stainless steel mesh,

perforated ss sheet,

steel perforated sheets
