304/316L Stainless Steel Perforated Drainage Cover

304/316L Stainless Steel Perforated Drainage Cover
304/316L Stainless Steel Perforated Drainage Cover 304/316L Stainless Steel Perforated Drainage Cover 304/316L Stainless Steel Perforated Drainage Cover

Large Image :  304/316L Stainless Steel Perforated Drainage Cover

Product Details:
Place of Origin: Made in China
Brand Name: zhuoxin
Model Number: 1000*2000m
Payment & Shipping Terms:
Minimum Order Quantity: Minimum order of 100 pieces
Price: $4 to $200
Packaging Details: wooden pallets or wooden cases
Delivery Time: about 7 days
Payment Terms: MoneyGram,T/T,L/C
Supply Ability: Produce 200 tons in 7 days
Contact Now Chat Now

304/316L Stainless Steel Perforated Drainage Cover

description
Productname: Stainless Steel Perforated Drainage Cover Keyword: Perforated Mesh
Hole Diameter: 1~4mm Packing: Pallet
Perforation Rate:: 20%~55% Regular Size: 1000mm*2000mm Customized

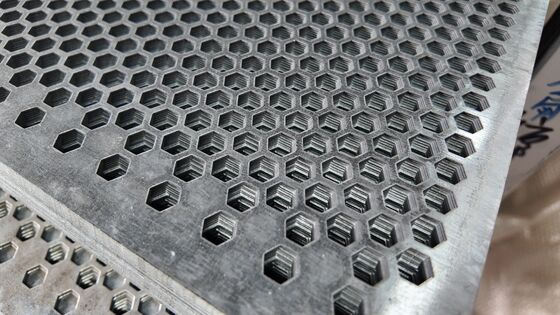

Hole Type: Round Hole, Rectangular Slotted Hole, Hexagonal Hole, Anti-clog Special Hole Optional Hole Patterns: Staggered Arrangement，Straight Arrangement
Holesize: 0.5mm - 20mm Color: Customizable
Highlight:

304 stainless steel drainage cover

,

316L perforated steel sheet

,

stainless steel drainage cover

304/316L Stainless Steel Perforated Drainage Cover


Product Detailed Introduction:

This heavy-duty perforated stainless steel drain cover is professionally manufactured for municipal drainage, commercial site and marine drainage projects, supplied in two mainstream grades: standard 304 stainless steel and upgraded 316L molybdenum-containing anti-corrosion stainless steel. Adopting integrated CNC punching, edge folding and reinforced welding process, the perforated trench cover features uniform drainage holes, integral load-bearing structure, flat surface and no sharp burrs. Comply with EU EN1433 drainage load standard, CE, RoHS and factory ISO9001 quality certification. Widely exported to Europe, Middle East, Southeast Asia, Oceania, coastal America and other regions, it is a reusable high-standard drainage accessory replacing cast iron and galvanized drain cover.

Stainless Steel Perforated Mesh Product Introduction Sheet:

Item Details
Material Steel, Galvanized Steel, Stainless Steel (304/316), Aluminum
Thickness 0.5–3mm
Sheet Size (Meter) 1.22*2.44m / 1.25*2.5m
Optional Hole Shapes Round, Square, Rectangular, Plum Blossom, Diamond, Cross, etc.
Product Features Smooth surface, Wind-resistant, Durable, Corrosion-resistant
Applications Filtration, Breeding, Craft making, Decoration, Basket processing,etc.
Architectural Infill panels, Sunshade, Cladding, Column covers, Metal signs, Fencing screens
Food & Beverage Grain dryers, Ventilation equipment, Baking trays, Coffee screens, etc.
Chemical & Energy Filters, Coal washing equipment, Mine cages, Battery separators, Centrifuges
Automotive Air filters, Radiator grilles, Flooring, Ventilation grilles, Engine ventilation devices, etc.
Construction Ceiling sound insulation, Acoustic panels, Stair treads, Pipe guards, Ventilation grilles
Buildings Building curtain wall mesh, Facades, Sunshades


Advantages of Stainless Steel Perforated Drainage Cover:

Efficient Drainage: Scientific round/slotted perforation design, fast water seepage, not easy to accumulate silt, avoid road waterlogging after heavy rain; 2. Anti-theft & High Load: Integral reinforced structure, high hardness, not easy to break, non-magnetic customized option available, high recycling value to prevent random theft; 3. Zero Maintenance: Whole stainless steel body, never rust, no need paint anti-corrosion maintenance, reduce later engineering maintenance cost; 4. Weather Resistant: Low temperature resistant, high temperature resistant, UV resistant, adapt to tropical, frigid, coastal global complex climate; 5. Easy Installation & Clean: Lightweight than cast iron cover, convenient handling, detachable design, easy flush cleaning of internal trench garbage; 6. Eco-friendly & Export Qualified: 100% recyclable metal material, meet EU green building import standard, complete customs clearance documents provided.

Production Process & Surface Treatment:

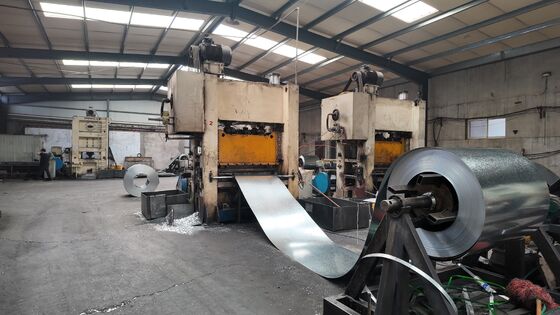

English: Adopt hot-rolled stainless steel coil raw material, imported CNC punching machine one-piece perforation, four-side bending reinforcement, bottom reinforcing rib welding for heavy load type. Standard surface finish: mill original polished finish, brushed anti-scratch finish, electropolishing bright finish. All edges pass deburring passivation treatment to prevent hand scratching and concrete scratching during installation. The whole plate has uniform hole opening rate, no hole offset, no plate deformation, strong pressure resistance. Custom anti-slip embossing process is available for pedestrian heavy-flow areas. All production procedures follow international drainage metal processing standards, stable size tolerance, easy on-site cutting and assembly.



304/316L Stainless Steel Perforated Drainage Cover 0

304/316L Stainless Steel Perforated Drainage Cover 1304/316L Stainless Steel Perforated Drainage Cover 2

Tag:

perforated stainless steel mesh,

perforated ss sheet,

steel perforated sheets
