Galvanized Anti-Skid Perforated Tread for Construction Stairs or Truck Step

Galvanized Anti-Skid Perforated Tread for Construction Stairs or Truck Step
Galvanized Anti-Skid Perforated Tread for Construction Stairs or Truck Step Galvanized Anti-Skid Perforated Tread for Construction Stairs or Truck Step Galvanized Anti-Skid Perforated Tread for Construction Stairs or Truck Step

Large Image :  Galvanized Anti-Skid Perforated Tread for Construction Stairs or Truck Step

Product Details:
Place of Origin: Made in China
Brand Name: zhuoxin
Model Number: 1000*2000m
Payment & Shipping Terms:
Minimum Order Quantity: Minimum order of 100 pieces
Price: $4 to $200
Packaging Details: wooden pallets or wooden cases
Delivery Time: about 7 days
Payment Terms: MoneyGram,T/T,L/C
Supply Ability: Produce 200 tons in 7 days
Contact Now Chat Now

Galvanized Anti-Skid Perforated Tread for Construction Stairs or Truck Step

description
Productname: Perforated Tread Keyword: Galvanized Anti-skid Perforated Tread
Material: Q235 Carbon Steel, Hot-dip Galvanized Finish Thickness Range: 1.0mm / 1.5mm / 2.0mm / 2.5mm / 3.0mm
Standard Width: 80mm / 100mm / 150mm / 200mm Customizable Standard Length: 1m / 2m / 3m, Custom Arbitrary Length Available
Highlight:

galvanized anti-skid perforated tread

,

construction stairs galvanized steel grating

,

truck step anti-skid tread

Galvanized Anti-Skid Perforated Tread for Construction Stairs or Truck Step


Product Overview:

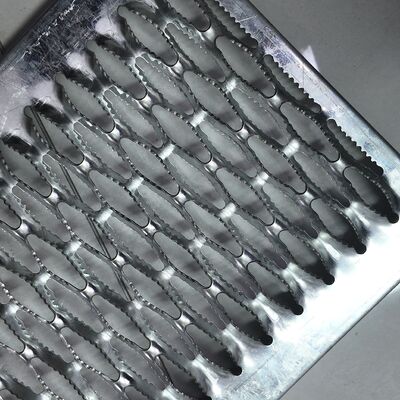

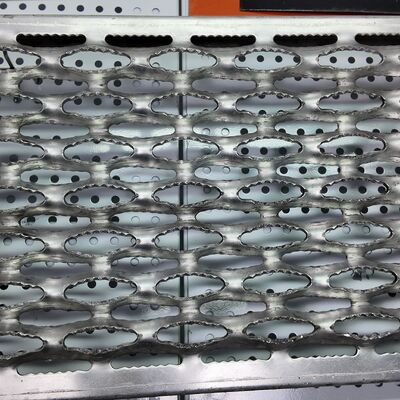

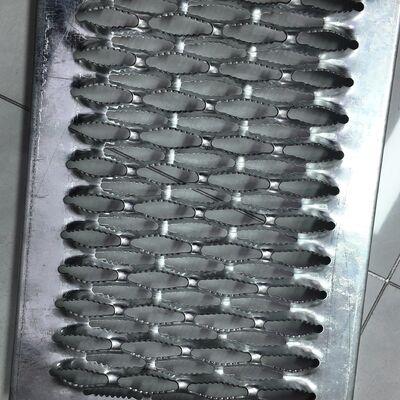

Our galvanized anti-skid perforated tread is a heavy-duty safety walking plate adopting unique crocodile mouth serrated raised hole design, specially manufactured for construction temporary stairs, truck chassis steps, vehicle access ladders and industrial platform walkways. The one-step stamping forming process creates upturned serrated edges around each hole, forming high-friction anti-slip texture that greatly reduces slipping risks in rainy, muddy, oily and dusty working environments.
The base material is high-strength carbon steel with full hot-dip galvanized surface treatment, which delivers excellent rust and corrosion resistance when exposed to outdoor rain, mud, road salt and construction dust. The perforated crocodile mouth structure allows rainwater, sediment, mud and oil to drain through rapidly, avoiding accumulation on the tread surface. We provide complete customized service for width, length, thickness and hole layout, suitable for light commercial vehicles, heavy-duty trucks, engineering machinery, building scaffolding stairs and factory maintenance platforms. Standard sizes are stocked in large quantity for fast delivery of urgent construction and auto modification orders.


Perforated Metal Sheet Product Introduction Sheet:

Item Details
Material Steel, Galvanized Steel, Stainless Steel (304/316), Aluminum
Thickness 0.5–3mm
Sheet Size (Meter) 1.22*2.44m / 1.25*2.5m
Optional Hole Shapes Round, Square, Rectangular, Plum Blossom, Diamond, Cross, etc.
Product Features Smooth surface, Wind-resistant, Durable, Corrosion-resistant
Applications Filtration, Breeding, Craft making, Decoration, Basket processing,etc.
Architectural Infill panels, Sunshade, Cladding, Column covers, Metal signs, Fencing screens
Food & Beverage Grain dryers, Ventilation equipment, Baking trays, Coffee screens, etc.
Chemical & Energy Filters, Coal washing equipment, Mine cages, Battery separators, Centrifuges
Automotive Air filters, Radiator grilles, Flooring, Ventilation grilles, Engine ventilation devices, etc.
Construction Ceiling sound insulation, Acoustic panels, Stair treads, Pipe guards, Ventilation grilles
Buildings Building curtain wall mesh, Facades, Sunshades



Production Process:

  • High-strength steel coil feeding: Q235 carbon steel coil selected as raw material with uniform tensile strength.
  • Integrated crocodile mouth stamping: Special mold one-time punches and bends serrated anti-slip holes on the whole plate.
  • Deburring & leveling: Roller leveling removes plate warpage, automatic deburring clears sharp edges around all holes and perimeter.
  • Hot-dip galvanized anti-corrosion treatment: Immerse finished plates into high-temperature zinc liquid to form full anti-rust coating.
  • Fixed-size cutting: Cut galvanized blank into standard or customized tread length and width.
  • Finished product inspection & storage: Test anti-slip texture, galvanized layer thickness and load capacity, qualified treads classified for stock delivery.



Product Advantages:

  • Superior anti-slip performance: Crocodile mouth serrated raised edge forms strong friction surface, effective anti-slip even under wet, muddy or oily conditions.
  • Full galvanized anti-rust layer: Hot-dip galvanizing process thickens zinc coating, long service life for outdoor construction and vehicle underbody use.
  • Self-drainage perforated structure: Mud, rainwater and debris fall through holes automatically, no slippery sediment buildup on tread surface.
  • High load-bearing capacity: Integrated steel plate without easy deformation, support pedestrian and light equipment walking load for long-term use.
  • Flexible customization & large stock: Standard tread sizes ready for immediate shipment, custom length, width and thickness available for special truck and stair sizes.
  • Safe burr-free edge: Secondary deburring after stamping, no sharp metal edges to scratch workers or vehicle tires.



Application Scenarios :

  • Construction Engineering: Temporary scaffolding stairs, building site access walkways, engineering vehicle maintenance platforms.
  • Truck & Automobile Industry: Heavy truck chassis steps, cargo van foot pedals, off-road vehicle modification climbing ladders, trailer anti-slip treads.
  • Factory Workshop: Equipment maintenance platforms, workshop safety stair treads, assembly line walkway anti-slip sheets.
  • Port & Logistics: Cargo loading platform treads, container truck foot steps, warehouse access stair plates.
  • Agricultural Machinery: Tractor, harvester anti-slip foot plates and chassis walkway panels.



Galvanized Anti-Skid Perforated Tread for Construction Stairs or Truck Step 0Galvanized Anti-Skid Perforated Tread for Construction Stairs or Truck Step 1Galvanized Anti-Skid Perforated Tread for Construction Stairs or Truck Step 2Galvanized Anti-Skid Perforated Tread for Construction Stairs or Truck Step 3
