Slotted Hole Perforated Mesh Panel Special for Building Ventilation

Slotted Hole Perforated Mesh Panel Special for Building Ventilation
Slotted Hole Perforated Mesh Panel Special for Building Ventilation Slotted Hole Perforated Mesh Panel Special for Building Ventilation

Large Image :  Slotted Hole Perforated Mesh Panel Special for Building Ventilation

Product Details:
Place of Origin: Made in China
Brand Name: zhuoxin
Model Number: 1000*2000m
Payment & Shipping Terms:
Minimum Order Quantity: Minimum order of 100 pieces
Price: $4 to $200
Packaging Details: wooden pallets or wooden cases
Delivery Time: about 7 days
Payment Terms: MoneyGram,T/T,L/C
Supply Ability: Produce 200 tons in 7 days
Contact Now Chat Now

Slotted Hole Perforated Mesh Panel Special for Building Ventilation

description
Productname: Slotted Hole Perforated Mesh Panel Keyword: Perforated Mesh
Hole Shape: Slot Hole Thickness: 0.6~2mm
Hole Pattern: Horizontal Parallel, Vertical Parallel, Staggered Material: HDG Steel, SS304, Aluminum Alloy, Powder Coated Q235
Standard Size: 1000mm*2000mm/1250mm*2500mmor Customized Tolerance: ±5％
Highlight:

slotted hole perforated mesh panel

,

building ventilation metal sheet

,

slotted metal sheet with warranty

Slotted Hole Perforated Mesh Panel Special for Building Ventilation


Product Overview:

Slotted hole perforated mesh panels are specially designed for building ventilation systems, precision manufactured from high-quality metal sheets via CNC stamping, featuring standard elongated oval (slotted) holes with uniform arrangement and smooth burr-free edges. The elongated hole shape provides excellent directional ventilation performance with low air flow resistance and high ventilation efficiency, while offering dust, insect, and foreign object protection. Widely applied in building exterior wall vents, underground parking ventilation windows, equipment room heat dissipation, central air conditioning outlets, duct ventilation covers and other building ventilation scenarios. Customizable in dimensions, hole patterns, materials and surface finishes according to architectural design requirements, it is the ideal solution for modern building ventilation systems.


Perforated Mesh Product Introduction Sheet:

Item Details
Material Steel, Galvanized Steel, Stainless Steel (304/316), Aluminum
Thickness 0.5–3mm
Sheet Size (Meter) 1.22*2.44m / 1.25*2.5m
Optional Hole Shapes Round, Square, Rectangular, Plum Blossom, Diamond, Cross, etc.
Product Features Smooth surface, Wind-resistant, Durable, Corrosion-resistant
Applications Filtration, Breeding, Craft making, Decoration, Basket processing,etc.
Architectural Infill panels, Sunshade, Cladding, Column covers, Metal signs, Fencing screens
Food & Beverage Grain dryers, Ventilation equipment, Baking trays, Coffee screens, etc.
Chemical & Energy Filters, Coal washing equipment, Mine cages, Battery separators, Centrifuges
Automotive Air filters, Radiator grilles, Flooring, Ventilation grilles, Engine ventilation devices, etc.
Construction Ceiling sound insulation, Acoustic panels, Stair treads, Pipe guards, Ventilation grilles
Buildings Building curtain wall mesh, Facades, Sunshades

Product Features:

Slotted hole perforated mesh panels are optimized for building ventilation. Compared with round holes, the elongated hole shape improves ventilation efficiency by over 30% with low air flow resistance, enabling directional air guidance. Scientific hole arrangement ensures high ventilation rate while effectively blocking mosquitoes, dust, leaves and foreign objects from entering indoors. The panels are flat and rigid, presenting an elegant appearance after installation that perfectly integrates with building facades. Hot-dip galvanizing or powder coating provides excellent weather and corrosion resistance, with outdoor service life over 15 years. Customizable in various irregular dimensions, open area ratios and surface colors according to architectural design requirements, achieving unity of functionality and aesthetics.

Building Ventilation Applications:

  • Exterior Wall Ventilation: Building facade vents, residential ventilation windows, commercial building ventilation louvers, office building exterior heat dissipation outlets
  • Underground Space Ventilation: Underground parking ventilation windows, basement vents, civil air defense ventilation covers, underground mall exhaust hoods
  • Equipment Room Ventilation: Distribution room heat dissipation covers, equipment room ventilation louvers, HVAC outdoor unit protection covers, elevator room vents
  • Duct System Components: Ventilation duct end protection covers, fresh air system outlets, smoke exhaust duct rain covers, AC duct decorative covers
  • Public Building Ventilation: School/Hospital/Mall ventilation louvers, stadium vents, subway station ventilation covers, parking lot exhaust systems
  • Other Applications: Curtain wall ventilation layers, sunroom heat dissipation outlets, balcony ventilation railings, bathroom exhaust covers

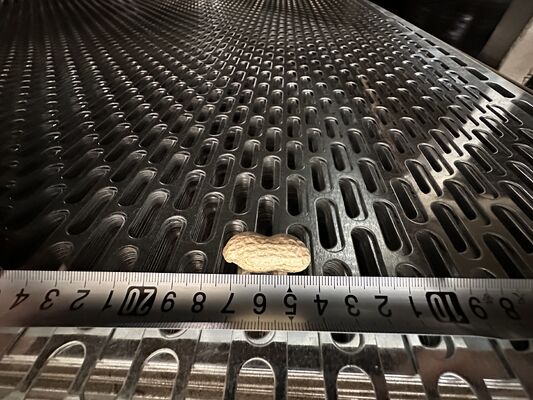

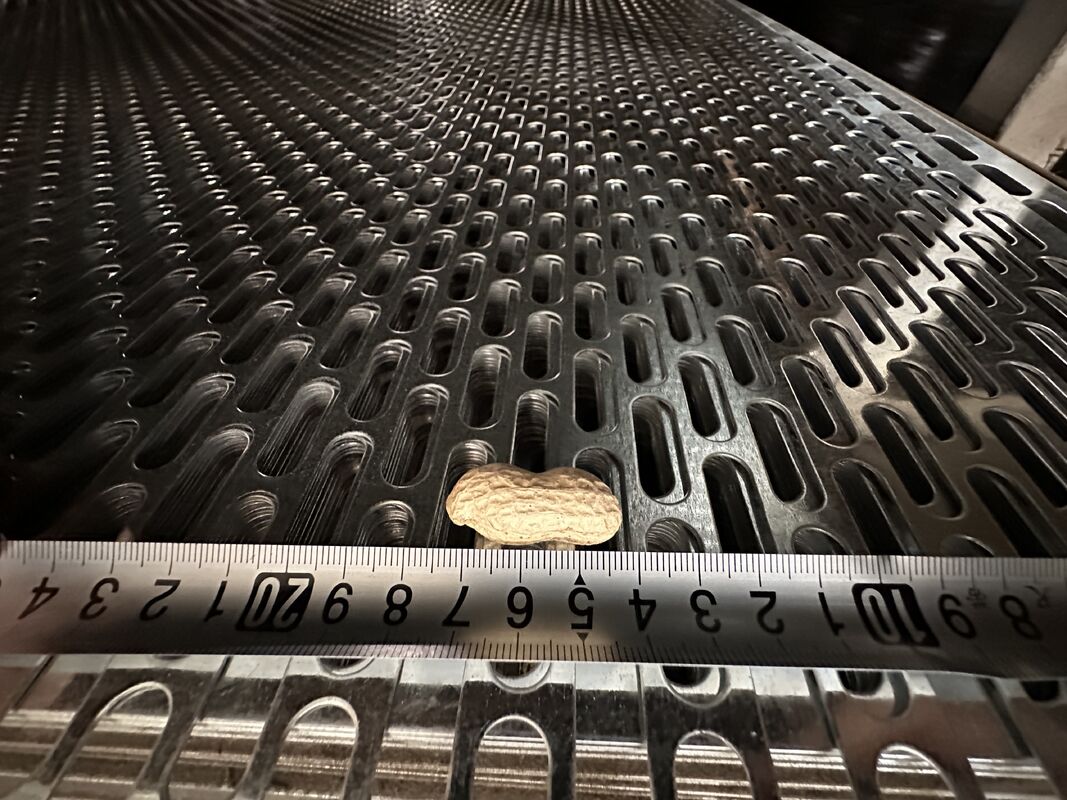

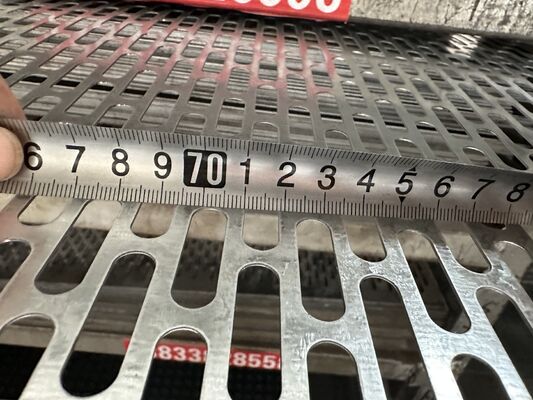

Slotted Hole Perforated Mesh Panel Special for Building Ventilation 0Slotted Hole Perforated Mesh Panel Special for Building Ventilation 1Slotted Hole Perforated Mesh Panel Special for Building Ventilation 2

Tag:

slotted perforated sheet metal,

perforated slotted metal sheet,

slotted metal plate
